CPSC 4420 Operating Systems

About Me

Professor Craton

Anything you want to know?

Introductions

Name
Major(s)
Favorite thing you did over break?

Syllabus

Link

Quizzes

Given regularly at beginning and end of class
Should be easy for you
Allow me to confirm that everyone is keeping up with course material

Labs

Code-based labs that do not parse or compile will be awarded zero credit
Outside resources are acceptable e.g. Stack Overflow, etc
Help from peers is acceptable
Your solution must be yours, and you must fully understand it

Lab Grading

Most labs will be graded for correctness and code quality, as in other courses
Labs may occasionally be graded orally at my discretion

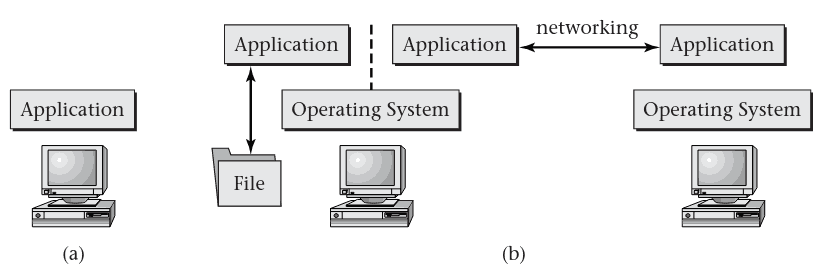

1.2 What is an Operating System

What does the OS do?

Handles concurrency to share hardware between tasks
Manages interactions between tasks
May support high-level interactions (files, etc)
Connecting to other systems

Can we have a computer without an operating system?

Abstraction

Provides application programs with an abstract view of underlying hardware
Manages low-level details

Application Programming Interface

API
All OS features made available to application programs
Run programs, open files, create network connections, etc

Kernel

Core of the operating system
Provides programmatic interfaces
Typically has no direct visibility from the user

Shell

Provides a way for users to interact with the kernel
Usually provides a way to start programs
sh, tcsh, bash

Desktop Environments

Creates a graphical shell for the user
Provides similar features to a text-based shell
KDE, GNOME, Explorer

C Language

Overview

Developed in 1972 to create Unix utilities
Unix kernel was re-implemented in C
Most current operating system kernels are written in C (Linux, BSD, Windows, MacOS, iOS)

Features

General purpose
Procedural
Statically typed
Standardized language with many implementations

Why C?

Low-level, portable language

Low-level

Allows direct access to memory
Allows assembly to be embedded

Portable

Assembly targets a specific ISA
C can be compiled for different architectures
OS kernels can be run on x86 and ARM without as much modification

Simplicity

C has a relatively small number of primitives
Compilers can be small

C

Scope

Provides lexical scope to eliminate global variables
Functions exist in global namespace
Functions may not be declared within other functions

Typing

Variables are statically typed
Type rules are weakly enforced
Implicit conversions are possible

Running C Programs

Compile to executable: gcc source.c --output executable
Run the executable: ./executable
tcc can compile and run C in one step: tcc -run source.c

int a = 1;
float b = 2.0;

printf("%f\n", a + b); // Prints 3.0

char * a = 1;
int b = 2;

printf("%d\n", a + b); // Prints 3

Pointers

Provide references to memory
Just an unsigned integer of the appropriate size
int *a defines pointer a
*b dereferences b
&c returns the address of c

#include <stdio.h>

int main() {
  int a = 5;
  int * b = &a;

  printf("%x", b);
}

Displaying the address of a value

#include <stdio.h>

int main() {
  int a = 5;
  int * b = &a;

  *b += 1;

  printf("%d", *b);
}

Dereferencing a pointer

#include <stdio.h>

int increment(int* value) {
  *value += 1;
}

int main() {
  int a = 1;
  increment(&a);

  printf("%d", a);
}

Passing pointers

Files in C

What is a file?

Resource for storing data
Typically stored on persistent media (HDD, SSD, etc)
Grouped together and organized as a file system

Organization

Linux organization described in FHS
Tree structure descending from root node /

Virtual File Systems

Used to read and write data from the kernel
/dev, /sys, /proc, /run
e.g. cat /proc/loadavg

Using files

Kernel provides system calls (open, read, write, close)
System call headers are available in the kernel source
Files are accessed as streams of bytes
Bytes are read and written starting from the beginning of the file by default

File API

open file to get a file descriptor for the open file
read or write using the file descriptor
close to tell the kernel we are done with the file

Basic file reading

#include <unistd.h>
#include <fcntl.h>

void main() {
  char buf[2048];
  int file = open("/proc/loadavg", O_RDONLY);

  int len = read(file, buf, 2048);
  write(1, buf, len);

  close(file);
}

cat implementation

#include <unistd.h>
#include <stdlib.h>
#include <fcntl.h>

void main(int argc, char ** argv) {
  if (argc != 2) exit(1);

  char buf[1024];
  int file = open(argv[1], O_RDONLY);

  int bytes_read;

  while (bytes_read = read(file, buf, 1024)) {
    write(1, buf, bytes_read);
  }

  close(file);
}

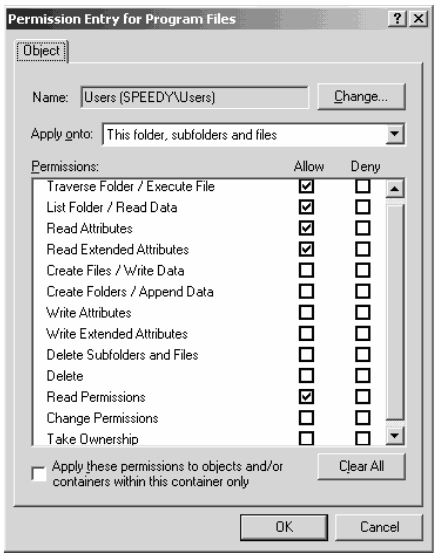

File permissions

On Unix systems, files can be set as readable, writable, and executable
These can be defined for the file owner, file owner group, and everyone

Permission encoding

3 bits
- Read (4)
- Write (2)
- Execute (1)
3 numbers used to store user, group, and world respectively

Example

User read and write, group read, world read:
- 644
User read, write, exec, group read and exec, world nothing
- 750

Modifying Permissions

chmod - change file mode bits

chmod 775 myfile.c

chown - change file owner and group

chown user:group myfile.c

chgrp - change group ownership

chgrp group myfile.c

cp implementation

#include <unistd.h>
#include <stdlib.h>
#include <fcntl.h>

void main(int argc, char ** argv) {
  if (argc != 3) exit(1);

  int in = open(argv[1], O_RDONLY);
  int out = open(argv[2], O_WRONLY|O_CREAT, 0644);

  char buf[1024];
  int bytes_read;

  while (bytes_read = read(in, buf, 1024)) {
    write(out, buf, bytes_read);
  }

  close(in);
  close(out);
}

C Types

Common types

int, char, float
unsigned int, long int
Pointers - int*, char*

Other Types

Arrays - [1, 2, 3] (essentially just pointers)
struct
enum

Batteries not Included

Most “complex” features are delegated to libraries
The core language doesn’t support common types such as strings
The standard library (written in C) is part of the standard and many implementations are available

Standard Library

libc
Many implementations available (BSD libc, glibc, MSVCRT.DLL, etc)
Defines interfaces for strings, math, I/O, OS operations, and more

Hello World

#include <stdio.h>

int main() {
  printf("Hello, world!\n");
}

unistd.h

Not part of the C standard library
Provides access to POSIX operating system API
More info

Hello World

#include <unistd.h>

int main() {
  write(1, "Hello, world!\n", 14);
}

Format Strings

Allow values of various types to be interpolated into strings
Used by printf, fprintf, scanf, and others

#include <stdio.h>

int main() {
  int a = 1;
  char b = 'a';
  float c = 2.0;

  printf("%d %c %f\n", a, b, c);
}

Functions

#include <stdio.h>

int add(int a, int b) {
  return a + b;
}

int main() {
  printf("%d", add(1,2));
}

Make and GCC

Make

Build automation tool
Performs actions ordered by configured dependencies as defined in makefile

GCC

GNU Compiler Collection
Main compiler, linker, and assembler used for this class
Free and open source optimizing compiler produced by the GNU project

What is GCC

Just a program

> which gcc
/usr/bin/gcc

How to use GCC

Run it
Enter /usr/bin/gcc in the shell. If the location of gcc is in your PATH, you can simply type gcc and the OS will resolve the full path.

> gcc
gcc: fatal error: no input files
compilation terminated.

Compiling Files

Compile source files into executable

> gcc src1.c src2.c --output executable

Hello, world

hello.c:

#include <unistd.h>

int main() {
  write(0, "Hello, world!\n", 14);
  return 0;
}

Compile

Preprocess, compile, assemble, and link our program to the file hello

> gcc hello.c --output hello

Run

We now have a new executable file. We can run it in the shell as:

> ./hello

More advanced operations

Compile source code into Assembler instructions:

> gcc -S src.c

Compile source code without linking:

> gcc -c src.c

Appendix A - Stacks

Stack Data Structure

Abstract data type
Supports push and pop
Last in, first out (LIFO)

Control Abstraction

Create organized sections of executable code that execute in well-understood ways and can be reused

Subroutine

Performs operations for the caller while the caller waits
Arguments, or actual parameters, are passed to subroutines and mapped to formal parameters from the subroutine definition
Subroutines that can return values can be called functions

Call Stack

Memory space for functions to use to store local variables, return addresses, and other data
Function calls push a new frame to the stack
Returns pop their frame when they are finished with it

DrawSquare Example

void DrawSquare(int x, int y, int size) {
  /* Draw a square using 4 lines */
  DrawLine(x, y, x, y + size);
  DrawLine(x + size, y, x + size, y + size);
  DrawLine(x, y, x + size, y);
  DrawLine(x, y + size, x + size, y + size);
}

Call stack review resources

Parameter Passing

Pass by Value

Actual parameter values are made available to the subroutine
Modification of values will not impact the caller
This may involve making a copy in memory

Pass by Reference

Actual parameters are references to data from the caller
Modification of values will impact the caller
Should not involve copying data

C

Pass by value

#include <stdio.h>

void increment(int i) {
  // This will not change the caller's value
  i = i + 1;
}

int main(void) {
  int i = 0;
  increment(i);
  printf("%d\n", i);
}

If we want to be able to modify values, we need to pass values by reference
We can’t do this in C, but we can use pointers passed by value to emulate it

#include <stdio.h>

void increment(int* i) {
  // This will change the caller's value
  *i = *i + 1;
}

int main(void) {
  int i = 0;
  increment(&i);
  printf("%d\n", i);
}

If we allow C++, we can use a proper pass by reference mode.

#include <stdio.h>

void increment(int &i) {
  // This will change the caller's value
  i = i + 1;
}

int main(void) {
  int i = 0;
  increment(i);
  printf("%d\n", i);
}

Hardware

Most ISAs pass values using a new stack frame and/or shared registers
Hardware is necessarily pass by value
Any pass by reference implementation needs to be built on values

Variable Numbers of Arguments

It can sometimes be helpful to accept a different number of arguments
One example of this is printf in C

int printf ( const char * format, ... );

Function Returns

End the function
Return some value

Booting

Execution

A CPU loads the next instruction from memory
This instruction is executed
This process repeats

Where does the first instruction come from?

Volatility

Most operating systems are stored in non-volatile memory
CPUs in most computers execute instructions from volatile memory
A set of operations is needed to move the operating system to a location that is executable

First-stage boot loader

Most modern systems include multiple stages of booting
The first step typically involves loading and executing firmware from a dedicated storage device
Examples include BIOS and UEFI

Second-stage boot loader

The initial boot loader is usually tightly coupled to the device
It is basic and has limited size
It is used to load a more complete bootloader that loads the full OS
Examples include GRUB, Syslinux, NTLDR, and BOOTMGR

GRUB

Popular boot loader used with Linux systems
Supports multiple operating systems

Kernel Initialization

Bootloader transfers control to the kernel
Kernel initializes memory and hardware
Kernel mounts the root filesystem
Kernel starts the first process

Uptime

cat /proc/uptime

Processes

Running instances of programs
Identified by a Process identifier

top

top can be used to show an interactive list of running processes

Process Tree

pstree

PID 0

PID 0 is not a regular process
Created during kernel initialization
Manages power when the CPU is not busy

PID 1

PID 1 is the first user space process
Commonly init or systemd
Serves as the parent of all other processes
Handles system shutdown and service management

Process Status

cat /proc/1/status

Kernel Log

The kernel ring buffer contains messages from the kernel
Useful for diagnosing hardware and boot issues
Accessible via the filesystem at /dev/kmsg (requires root) or dmesg

sudo head /dev/kmsg

Windows Notepad Remote Code Execution Vulnerability

1.3 Middleware

Middleware

Middleware is software that sits between application programs and the operating system
Databases, Runtimes, etc

1.5 Multiple Computations on One Computer

Resources

Limited CPU time, disk access bandwidth, memory bandwidth
Multiple applications using resources simultaneously

Concurrency

Make efficient use of resources
When we aren’t actively using the CPU because we are waiting on I/O, another program can use it

Thread

Fundamental unit of concurrency
Sequence of programmed actions
Each program includes at least one thread

Process

Container for one or more threads
Protects threads from interactions from unrelated threads running on the same computer
Threads in different processes do not share memory

Thread APIs

Create
Kill
Switch

Scheduling

OS will have many threads that can be run
Limited CPUs are available
OS must select thread to run

1.6 Controlling Interactions Between Computations

Dependencies

Sometimes threads are not fully independent
One thread may generate data that another consumes
These threads need to interact via synchronization

What if thread A is waiting for thread B and thread B is waiting for thread A?

Deadlock

Cyclic waiting
Must be addressed to prevent freezes
Difficult to solve generally

Transaction

Unit of computation with no externally visible internal state
Computation succeeds or fails as a unit
Useful concurrency primitive

Accidental Interaction

Threads share memory, so they may interact unintentionally
This can be mitigated on some systems using virtual memory

1.7 Supporting Interactions Across Time

Storage

OS provides long-term storage for computation results
Results can be retrieved for future computations

File system

Named persistent storage
Typically organized in a hierarchy

File access

Accessed via OS APIs (read, write)
May be mapped to memory space and accessed directly with load and store

Databases

Provide persistent storage
Allows related data to be accessed easily

What if the system goes down during a write?

Crashes

Any operation should be immediately interruptible without leaving persistent storage in a degraded state
Atomic transactions and journaling may be a solution to this

1.8 Supporting Interactions Across Space

Networking

Provides a means for separate systems to interact
Network stack organized into layers

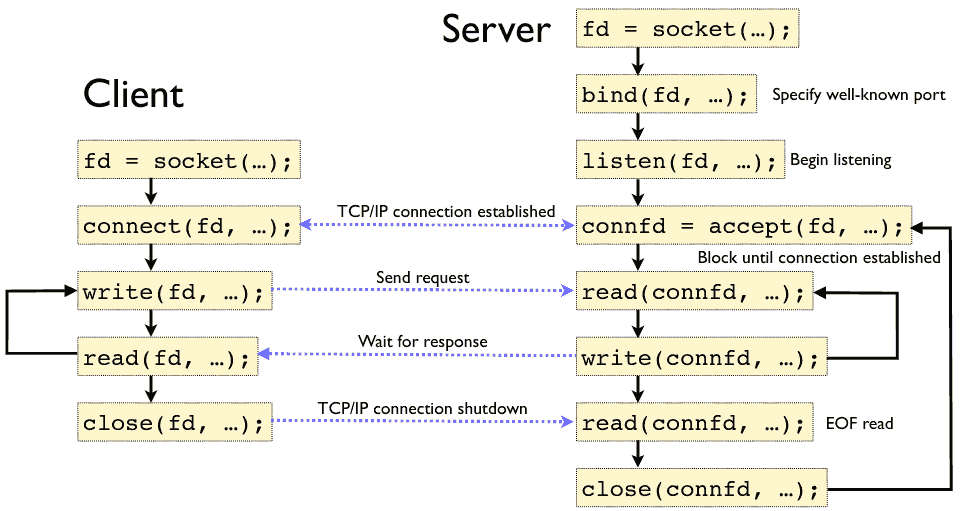

Sockets

Provides a standard and consistent API for applications to use for networking
Supports streaming and packet-based communication

Socket types

Stream - provides a virtual circuit
Datagram - delivers individual packets

Socket Implementation

Independent of network type
Most typically used with TCP/IP and UDP/IP

if((sockfd = socket(AF_INET, SOCK_STREAM, 0)) < 0) {
  return 1;
}

if( connect(sockfd, &serv_addr, sizeof(serv_addr)) < 0) {
  return 1;
}

if (n = read(sockfd, recvBuff, sizeof(recvBuff)-1)) <= 0) {
  return 1;
}

printf("%s\n", recvBuff);

1.9 Security

Threats

Operating systems need to be able to behave correctly in the face of malicious actors

Objectives

Confidentiality
Integrity
Availability
Accountability

2 Threads

2.2 Example Multi-threaded Program

2.1 Introduction to Threads

Thread

A sequence of computational instructions run one after another

Single-threaded Programs

Simple programs typically have only one thread
Many programs you have written fall into this category
They are easy to reason about and understand

Multi-threaded Programs

Contain multiple threads of execution
Are suitable for parallel processing tasks
Make effective use of modern computer architectures

Programs and Threads

Programs are a collection of instructions
A thread is a collection of instructions being executed
Every running program has at least one thread

Process

Most operating systems implement a container to hold threads
This container is called a process

Lifetime

Threads exist from the time their first instruction begins executing until the time of last instruction execution
Threads with overlapping lifetimes are running concurrently
A key feature of most operating systems is to allow threads to run concurrently

2.3 Reasons for Concurrent Threads

Why is it desirable for the computer to execute multiple threads concurrently, rather than waiting for one to finish before starting another?

Responsiveness

Allows rapid response to input even while working on other computations
This is demonstrated by the example as both threads can respond to a timer

Resource Utilization

The computer has many hardware resources (CPU, memory, disks, etc)
We want to use all of these resources efficiently
We need to be able to pause a thread waiting on I/O to allow the CPU to be used for other tasks

Modularization

We may also like threads for creating cleaner programs
Aspects of computation can be handled independently

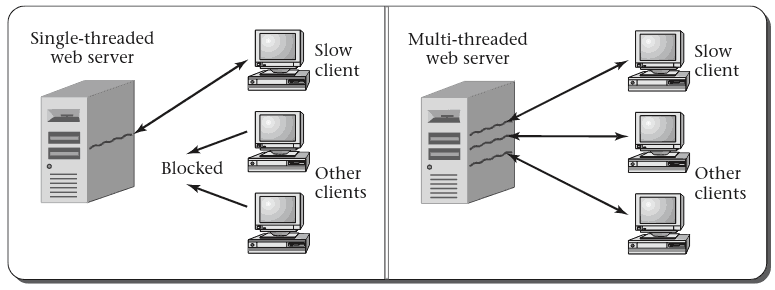

Web Server Example

What does a web server do?
How might threads help?

Multiprocessor Example

Nearly all systems now have multiple processors
How are threads useful here?
make -j

2.4 Switching Between Threads

Switching

A single-threaded CPU can run only one thread at a time
A multi-threaded CPU still supports a finite number of concurrent threads
We need a mechanism for moving execution from one thread to another

Pausing

Stop a sequence of instructions from running
Start up again later
Something else can use the CPU in between

Stopping Processes

Stop the process:
- kill -STOP [pid]
Resume execution:
- kill -CONT [pid]

New Instruction

switchFromTo(currentThread, newThread)
Instructs the CPU to move its execution from one thread to another

What does it mean to switch threads?

Consider:

Instruction Pointer
Stack Pointer
Register Values

Changing Threads

Store all required registers (IP, SP, data registers, etc)
Update instruction pointer

Thread Control Block

TCB
Kernel data structure for storing thread parameters
Address of block may be used to identify threads

What about memory

Each thread’s memory should remain accessible and largely unchanged after switching
The stack should be preserved exactly
The stack is pushed to hold thread state when switching just like when calling a function

Pseudocode

  Push registers to outgoing thread's stack
  Store stack pointer in outgoing->sp
  Load stack pointer from next->sp
  Store `restore` address into outgoing->ip
  Jump to next->ip
restore:
  pop registers from the now resumed outgoing thread

Security

On most systems, memory protections are enforced
A process can’t jump into another process’s memory
The user-mode thread switching described is not possible in practice

Kernel

The kernel must be responsible for thread management and switching

Yield

Simplified version of switchFromTo
Take no parameters
Informs the kernel that the current thread is ready to take a break

Yield Implementation

outgoing = current
next = chooseNextThread()
current = next // Maintain global variable
switchFromTo(outgoing, next)

Multiple processors

A modern system can run multiple threads simultaneously in hardware
We need to maintain information about the n running threads on our n processors
When a thread yields on one CPU, we can begin running a new thread there

Fork

#include <unistd.h>
#include <stdio.h>

int main() {
  int i;
  i = fork();

  printf("%d\n", i);
}

Process

Closest to the informal idea of a running program

Process

One or more threads
Virtual memory accessible to those threads
Other access rights
Resource allocation context
Other context (e.g. working directory)

Process Identification

Each process has a process ID number (PID)
All PIDs are positive integers

Process Creation

Processes are created as a fork of another
The only exception is the initial process created by the OS on boot

Fork

The fork system call can be called from a thread to create a new process
The parent calling fork sees the process ID of the child as a return value
The child process sees a return value of 0
The child process is otherwise an exact copy of the parent

#include <unistd.h>
#include <stdio.h>

int main() {
  int pid = fork();

  printf("PID: %d\n", pid);
}

Memory

A forked process sees a copy of its parent’s memory
Clobbering another process’s memory is not possible
Communication via memory modification is not available

Signals

We need a way to communicate between processes
One way to do this is to send signals

#include <unistd.h>
#include <stdio.h>
#include <signal.h>

int main() {
  int pid = fork();

  if (pid) {
    kill(pid, SIGKILL);
    printf("Killed child process\n");
  }

  printf("Done\n");
}

2.5 Pre-emptive multitasking

Cooperative Multitasking

Threads run until they yield time back to the OS

What are some issues with cooperative multitasking?

Cooperative Multitasking Issues

One thread may not be as cooperative and hog time from others
The OS doesn’t know when it will next have CPU time to perform device I/O

Pre-emptive Multitasking

Allows the OS to take control and switch to another thread

Interrupts

CPUs generally execute the next instruction
Devices have the ability to interrupt this flow and redirect execution to an interrupt handler
Using timer and interrupt handlers, the OS can implement pre-emptive multitasking

2.6 Security and Threads

DoS

One thread hogs execution preventing the system from running properly

Race Conditions

If not programmed carefully, threads can lead to undefined and unexpected behavior
This behavior can sometimes be exploitable by an attacker

3.1 - 3.2 Thread States

Threads

A sequence of computational instructions run one after another
Requires OS-level management for runtime data

Thread Switching

A thread can ask the OS to run another thread by calling yield()
The OS may take control of the CPU using pre-emptive multitasking

How does the OS determine which thread to switch to?

Scheduling

OS determines which process to run next
Decision should be based on what the users of the system need
Should optimize resource use

Waiting Threads

Threads may be blocked waiting for I/O
e.g. a webserver waiting on a disk access

Busy Waiting

Loop until the task is complete, checking frequently
Wastes CPU time that could be used by other threads
OS should implement a better mechanism

Queues

Run queue - Queue of threads that can be run now
Wait queue - Queue of threads waiting on something
- 1 queue per wait reason

3.4 Fixed-priority scheduling

Scheduling Mechanisms

Priority
- Fixed Priority (3.4)
- Dynamic Priority
  - Earliest Deadline First (3.5.1)
  - Decay Usage (3.5.2)
Proportional Share (3.6)

Priority

Number assigned to each thread
May be assigned by a user and not adjusted automatically by the OS
Note that higher priorities may be represented by lower numbers

Scheduling

The runnable thread with the highest priority will be run next

Advantages

Incredibly simple
Can help meet some limited user needs

What are some weaknesses of fixed-priority scheduling?

Implementation

Priority queue
Most simply, a queue for each priority level

Ties

Option 1 - Keep running the current thread (FIFO)
Option 2 - Cycle highest priority thread in round-robin fashion (RR)

FIFO

Allows the thread to complete its work fastest
Does not allow any other high priority threads to run

RR

Allows all highest priority threads to run
Delays work on one thread to service others

Niche

A busy high priority thread will consume all system resources
In a carefully controlled system, they can be useful

Hard-real-time systems

Data and computation must be completed on a fixed timetable
Aircraft
Control systems
Rockets

Theorems

Liu and Layland 1973
Simplify the process of analyzing systems with real-time constraints

Rate-monotonic scheduling

If the threads will meet their deadlines under any fixed priority assignment, then they will do so under an assignment that prioritizes threads with shorter periods over those with longer periods.

Starting Together

To check that deadlines are met, it suffices to consider the worst-case situation, which is that all the threads’ periods start at the same moment.

Gantt Chart

Bar representing passage of time
Can be used to analyze feasibility of a real-time schedule

Example

Thread 1
- Period and deadline: 4 seconds
- Worst-case execution time: 2 seconds
Thread 2
- Period and deadline: 6 seconds
- Worst-case execution time: 3 seconds

Can this application be serviced on a single CPU using fixed-priority scheduling?

Example 2

Thread 1
- Period and deadline: 4 seconds
- Worst-case execution time: 2 seconds
Thread 2
- Period and deadline: 6 seconds
- Worst-case execution time: 2 seconds

3.3 Scheduling Goals

Scheduling

Optimize system resources
Provide snappy user experience

System Usage

Many consumer devices (laptops, phones, etc) are idle most of the time
Servers in data centers often have a backlog of work to do

Performance Goals

Throughput
Response time

Throughput

Measure of work done per time
An example would be requests per second (RPS) for a webserver
Typically goes down as we change threads more quickly

Context Switching

Changing threads incurs a cost
State has to be saved to memory when pausing a thread
State has to be loaded from memory when resuming a thread

What impact does the cache hierarchy have on context switching?

Cache Hierarchy

The implementation of the cache hierarchy makes context switching more expensive
Another thread will replace many of our cached values

How does this change in multiprocessor systems?

Multiprocessor Systems

A context switch to another CPU will be much slower
The thread’s old cache will be inaccessible from the new CPU
Processor affinity is helpful to keep threads running on the same CPU

Cache Coherence Protocol

Values that exist in another CPU’s cache are especially slow to access
This further increases the cost of context switches to another CPU

Response Time

Time to service a single request
Typically goes down the faster we change contexts

Control Goals

Urgency
Importance
Resource allocation

Urgency

How soon a task needs to be completed
A homework assignment with a due date
A VOIP packet to send

Importance

How critical the task is to complete
Your graduation application

Urgency and Importance

Orthogonal concepts
A task can be urgent without being import or important without being urgent

Resource allocation

How to split resources between users

Scheduling Goals

Performance
- Throughput
- Response Time
Control
- Urgency
- Importance
- Resource allocation

3.5 Dynamic Priority Scheduling

Priority based scheduling

Useful in limited circumstances
Helpful as a framework for more advanced scheduling
What if the OS could automatically adjust priorities?

Earliest Deadline First

Useful in real-time applications with deadlines
Assign highest priority to thread with the earliest deadline
Improves upon rate-monotonic scheduling

Example Processes

Process	Execution	Time Period
P1	1	8
P2	2	5
P3	4	10

Decay Usage Scheduling

Suitable for systems without deadlines
Lower priority for threads that run more
Allows quick, interactive tasks to execute instantly while moving compute-intensive tasks to the background

Fairness

Equal sharing of resources my be more important than other factors

Goal

Provide tunable fair sharing of resources between threads and/or system users

Mechanisms

Lottery Scheduling
Weighted Round-robin
Weighted Fair Queuing

Lottery Scheduling

Uniform time slices for all threads
No formal rotation
Next thread to run selected randomly using assigned weights

Lottery Scheduling

Simple
Technically correct in the long run
May produce undesirable behavior in the short run

Weighted Round Robin

Threads with larger allocations are assigned larger time slices
Reduces context switches

Example

Three threads (T1, T2, T3)
Allocated resources in the proportions 3:2:1

Weighted Fair Queuing

Threads with smaller allocation have to sit out on some rounds
Keeps accumulated runtimes very close to desired proportions

Linux Example

nice values feed into scheduler
renice can adjust niceness
renice -n {niceness} -p {pid}

Assembly

Introduction

Tight coupling between code and machine instructions
Not portable, code is written for a specific ISA
Can be extremely efficient if optimized properly

Registers

Internal CPU data storage
Very limited in number
Hold operands for asm instructions

Instructions

Generally operate on registers
May perform other functions call, ret, syscall

ISA

Instruction set architecture
Set of instructions provided by a CPU
Examples include x86, x86_64, ARM, and ARM64

System Call

Used to run kernel code from userspace
syscall instruction triggers kernel
Values are picked up from appropriate registers

System Call Registers

Register	Purpose
`%rax`	System call number
`%rdi`	1st parameter
`%rsi`	2nd parameter
`%rdx`	3rd parameter
`%r10`	4th parameter
`%r8`	5th parameter
`%r9`	6th parameter

.globl _start
_start:
 mov $1, %rdi
 leaq message(%rip), %rsi
 mov $14, %rdx
 mov $1, %rax
 syscall
 xor %rdi, %rdi
 mov $60, %rax
 syscall

message:
 .string "Hello, world!\n"

Functions

call and ret perform jumps and adjust state
push and pop access stack
rax register is used for return value in x64 calling convention

Common Function Registers

Register	Purpose
`%rax`	1st return register
`%rdi`	Used to pass 1st argument to functions
`%rsi`	Used to pass 2nd argument to functions
`%rdx`	Used to pass 3rd argument to functions
`%rcx`	Used to pass 4th argument to functions
`%rsp`	Stack pointer

.globl _start
_start:
 call get_message
 mov $1, %rdi
 mov %rax, %rsi
 mov $14, %rdx
 mov $1, %rax
 syscall
 xor %rdi, %rdi
 mov $60, %rax
 syscall

get_message:
 leaq message(%rip), %rax
 ret

message:
 .string "Hello, world!\n"

4.1 Synchronization and Deadlocks

Interaction

We have seen how threads are created, scheduled, and executed
The tools we have so far allow threads to run independently
Sometimes threads have dependencies

Independent Execution

Create threads
Run independently
Combine thread results

What if threads need to share data?

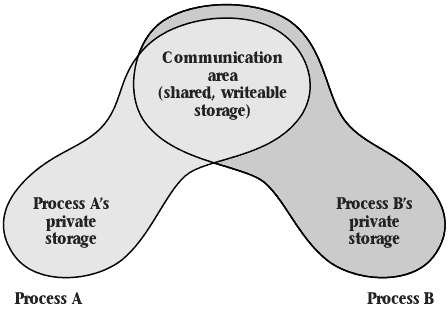

Memory

A pointer to a memory location can be shared when creating a thread
The thread can allocate memory and use stack allocated memory
Global variables and data are accessible to all threads

What behaviors do we need to avoid if we have shared memory?

4.2 Data Races and the Need for Mutual Exclusion

Thread Race Conditions

Two threads may be operating concurrently in an unsyncronized manner
This can lead to output that differs over different program runs
This may lead to bugs or unexpected behavior

Example

if(seatsRemaining > 0){
  dispenseTicket();
  seatsRemaining = seatsRemaining - 1;
} else {
  displaySorrySoldOut();
}

Can the example sell more tickets than are available?

What if it is running in multiple threads?

examples/race/tickets.c

Core Issue

Multiple threads operating on the same data structure with interleaving modifications

Solution

Allow only one thread to access the data at a time
Sometimes referred to as locking the data structure
This creates mutual exclusion (mutex)

Thread Safe Operations

Only reading from shared data structure
Interleaving operations without data dependencies
Interleaving atomic operations

4.3 Mutexes and Monitors

Data Races

Sharing data between threads can cause issues
This can be resolved by using a lock to gain exclusive access

Mutual Exclusion Lock

Provided by the OS
Commonly known as a mutex

Mutex POSIX API

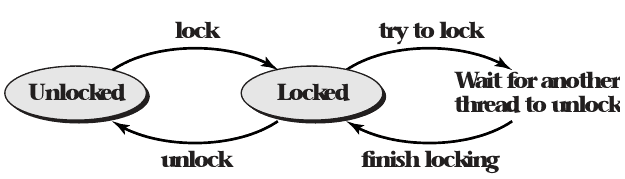

States

Locked (held by some thread)
Unlocked (not held by any thread)

Unlock Operation

Only allowed when the mutex is locked
Returns immediately

Lock Operation

Allowed on locked and unlocked mutexes
May force the caller to wait until the lock is unlocked by another thread

POSIX API

pthread_mutex_t my_mutex;
pthread_mutex_init(&my_mutex, 0);
pthread_mutex_lock(&my_mutex);
// operate on the protected data structure
pthread_mutex_unlock(&my_mutex);
// destroy when done
pthread_mutex_destroy(&my_mutex);

How do we build mutual exclusion?

Mutex Implementation

Exceptional Circumstances

Unlocking an already unlocked mutex
Unlocking a mutex locked by a different thread
Locking a mutex that we already hold

Mutex Types

PTHREAD_MUTEX_DEFAULT - Produces undefined behavior in exceptional cases
PTHREAD_MUTEX_ERROR_CHECK - Error codes returned for exceptional cases

Mutex Types

PTHREAD_MUTEX_NORMAL - Self-deadlocks are possible. Produces undefined behavior in other cases
PTHREAD_MUTEX_RECURSIVE - A counter is used for lock state. A mutex can be locked multiple times and must be unlocked the same number of times before truly being unlocked

Monitors

OOP approach to thread safety
Provide more structured mutexes

Monitor Objects

All state is private
Objects include a mutex in addition to their state
Every public method begins by locking the mutex and ends by unlocking it

Races

A race on object state will be impossible if the object is a monitor

Language support

Can be automatic (e.g. class monitor)
synchronized keyword provides object locking at the method level
Can be implemented manually

Mutex Implementation

Atomic instruction is needed that can modify memory and report its previous value
swap to exchange a register value with memory is sufficient

Spinlock

Memory value 1 is unlocked, 0 is locked
Unlock by storing 1
Lock by swapping 0 with the mutex value
- Locking succeeded if we get a 1 back
- Otherwise, try until we get a 1 back

to lock mutex:
  let temp = 0
  repeat
    atomically exchange temp and mutex
  until temp = 1

Cache-conscious spinlocks

Wait for another thread to change the lock state before atomically locking it
Avoids poor cache performance while waiting

to lock mutex:
  let temp = 0
  repeat
    atomically exchange temp and mutex
    if temp = 0 then
      while mutex = 0
        do nothing
  until temp = 1

Spinlocks

Explicitly waste CPU time
Can be appropriate in the case where very little waiting is typically needed due to fast operations
Does not require a system call

Queuing Mutex

Avoids spinning
Components
- Mutex state
- Wait queue for waiting threads
- Cache-conscious spinlock to protect own state

4.4 Synchronization Patterns

Producer-consumer model

One thread produces data consumed by another thread
Can be implemented sequentially
Can be implemented as threads that wait on one another, but with limited concurrency

Concurrency

Producer and consumer run at the same time
Producer creates output and stores it
Consumer grabs input as needed from storage

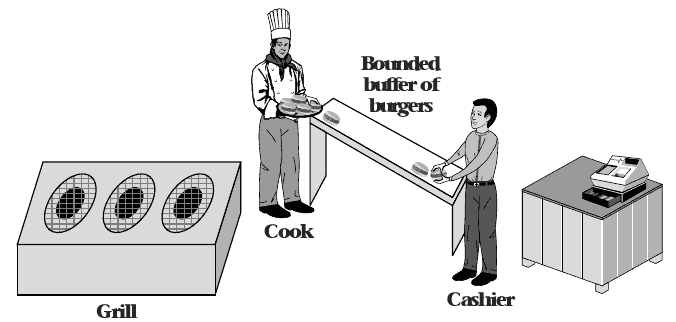

Bounded Buffer

Provides storage space for producer output
Limited in space because space is finite and larger size produces diminishing returns
When buffer is empty, consumer must wait
When buffer is full, producer must wait

Spin-waiting Producer

producer:
    while True:
        queue.lock()
        while (queue.isFull()):
            queue.unlock()
            queue.lock()

        queue.append(task)
        queue.unlock()

Spin-waiting Consumer

consumer:
    while True:
        queue.lock()
        while (queue.isEmpty()):
            queue.unlock()
            queue.lock()

        task = queue.pop()
        doStuff(task)
        queue.unlock()

Pipes

Provide OS-level support for bounded buffers between processes
du | sort -n

Readers/Writers Locks

Alternative to mutex
Allows lock to specify whether thread is reading or writing
Only one writer may access the mutex at a time, but multiple readers are allowed

Barriers

Requires multiple concurrent threads to finish a task before moving on
Similar to our use pthread_join, but does not require threads to terminate

Condition Variables

Provide a way to bundle multiple threads waiting on the same condition
A signaling mechanism is used to wake threads when the condition is met

Condition Variable Producer

producer:
    while True:
        queue.lock()
        while (queue.isFull()):
            queue.unlock()
            wait(fullCV) # Sleep
            queue.lock()

        queue.append(task)
        signal(emptyCV)
        queue.unlock()

Condition Variable Consumer

consumer:
    while True:
        queue.lock()
        while (queue.isEmpty()):
            queue.unlock()
            wait(emptyCV) # Sleep
            queue.lock()

        task = queue.pop()
        signal(fullCV)
        doStuff(task)
        queue.unlock()

Semaphores

Somewhat similar to a mutex, but can take on values other than 0 and 1
A semaphore that uses only 0 and 1 is a mutex
Larger counter values can be useful when implementing bounded buffers or other concurrency mechanisms

4.7 Deadlocks

Concurrency

Addresses problems of responsiveness and throughput
Creates problems with data races
Races can be resolved using synchronization patterns

What problems can be caused by synchronization?

Example

def transfer(srcAccount, dstAccount):
  lock(srcAccount.mutex)
  lock(dstAccount.mutex)
  srcAccount.balance = srcAccount.balance - amount
  dstAccount.balance = dstAccount.balance + amount
  unlock(srcAccount.mutex)
  unlock(dstAccount.mutex)

Analysis

Mutexes prevent race conditions
Transfers will generally work correctly
What if two accounts transfer to one another concurrently?

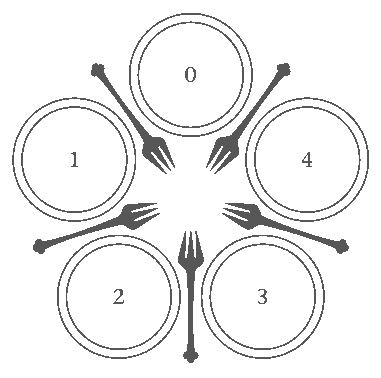

Deadlock

Each thread locks the first mutex and waits for the second
They now have a circular dependency and will never progress or unlock their mutex

Deadlock conditions

Threads hold resources exclusively
Threads hold some resources while waiting for others
Resources cannot be removed from threads by force
Threads wait in a circular chain

Addressing Deadlocks

Detection and mitigation
Prevention

Detection

OS stores additional information about mutexes
Track which thread holds a mutex
Record which mutex a thread is waiting for
Use this graph to periodically check for cycles (deadlocks)

Breaking the Deadlock

A thread can be rolled back to before it attempted the offending lock
Most systems don’t support rolling back threads
Killing a thread is the typical solution

Immediate detection

If we detect deadlock conditions when the last lock in the cycle is attempted, we can notify applications and they can choose to take appropriate action

Prevention Through Resource Ordering

Requires resources to have global IDs
When locking resources, lock them in order by ID

Example

def transfer(srcAccount, dstAccount):
  lock(min(srcAccount, dstAccount).mutex)
  lock(max(srcAccount, dstAccount).mutex)
  srcAccount.balance = srcAccount.balance - amount
  dstAccount.balance = dstAccount.balance + amount
  unlock(srcAccount.mutex)
  unlock(dstAccount.mutex)

Linux Scheduler Example

static void double_rq_lock(struct rq *rq1, struct rq *rq2) {
  if (rq1 == rq2) {
    raw_spin_lock(&rq1->lock);
  } else {
    if (rq1 < rq2) {
      raw_spin_lock(&rq1->lock);
      raw_spin_lock(&rq2->lock);
    } else {
      raw_spin_lock(&rq2->lock);
      raw_spin_lock(&rq1->lock);
    }
  }
}

4.8 Interaction of Synchronization and Scheduling

Synchronization and Scheduling

Scheduler determines which thread to run
Synchronization actions performed by running threads determine which other threads are runnable

Priority Inversion

Causes lower priority threads to be favored over higher priority threads
Can occur when threads of different priorities share a mutex

Short-term example

High priority thread waits on I/O
Low priority runs and acquires mutex
I/O completes and the high priority thread preempts the other
High priority thread can’t acquire mutex
Low priority thread resumes

Short term issues

Generally not a significant problem
Concurrent algorithms should be designed to only briefly hold a mutex
High priority thread will resume promptly

Problematic Example

High and medium threads both wait on I/O
Low priority thread runs and acquires mutex
All I/O completes and the high priority thread preempts the others
The high priority thread cannot acquire the mutex and waits
The medium priority thread runs and the low priority thread is unable to give up the mutex

Possible Solution

Boost priority of lower priority threads that haven’t run much (e.g. decay usage scheduler)
Creates problems on real-time systems where fixed priorities are desired

Priority Inheritance

A lower priority thread borrows the higher priority of a thread that is waiting on it
Similar ideas can be applied to other schedulers

Convoy Phenomenon

A popular mutex may constantly be contested among a number of threads
This creates a “convoy” of threads in the waiting queue

Convoy Issues

Increased context switching due to most lock operations requiring a context switch
Decreased throughput due to increase context switching
Breakdown of scheduler prioritization as many threads are not runnable
Mutex wait queue manages scheduling in practice

Solution

Integrate the mutex wait queue with the scheduler and avoid simple FIFO behavior
Allow a high-priority thread to relock a mutex it gives up even if other threads are waiting on it

4.10 Security and Synchronization

Policy vs Practice

Some security flaws are due to improper policies implemented correctly
Other flaws may be due to correct policies with buggy implementations

Synchronization Bugs

Concurrency is hard, so programmers are likely to introduce bugs
Race conditions are hard to test for, as the system will usually perform correctly
Crackers may be able to induce race conditions more frequently than would naturally occur
Race conditions can allow “impossible” situations and break through defenses

Time of check to time of use

Class of bugs
Involve checking for some condition and then using it in a concurrent system
If the value changes between these points, security assumptions can be violated

6.2 Uses for Virtual Memory

Memory Protection

Shared memory creates concurrency challenges
What if each thread had private memory?

Virtual Memory

Provides memory privacy
Can also be repurposed for many other uses

Addressing

Addresses are used to look up memory locations
Virtual memory decouples addresses that programs use to identify memory from physical memory locations
Virtual addresses are used by software
Physical addresses are real locations in hardware

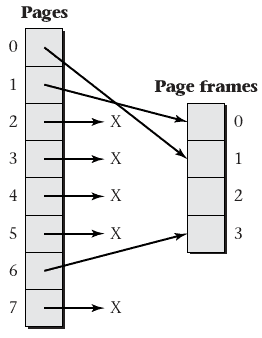

Address Mapping

Load and store operations are given virtual addresses
Memory management unit (MMU) is used to translate addresses

Virtual Memory Properties

Virtual to physical mapping stored in a table to be general and configurable
To keep table size manageable, addresses are grouped into pages
Table contents are controlled by OS
Table can be sparse. Undefined pages are illegal to use (page fault).
Pages may have more granular permission (R/W)

Uses

Private storage
Controlled sharing
Flexible allocation
Sparse address spaces
Persistence
Demand-driven loading
Efficient zero filling
Substituting disk for RAM

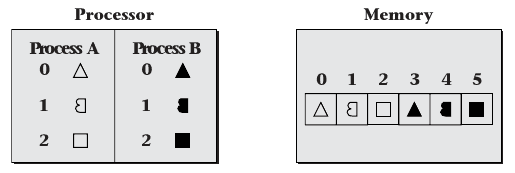

Private Storage

Each computation should be able to use whatever virtual addresses it finds most convenient for its objects, without needing to avoid using the same address as some other computation
Each computation’s objects should be protected from accidental (or malicious) access by other computations

Process

Group of one or more threads in a protection context
Protection context is a broad idea. For now, it means an isolated virtual address space

6.2 Uses for Virtual Memory

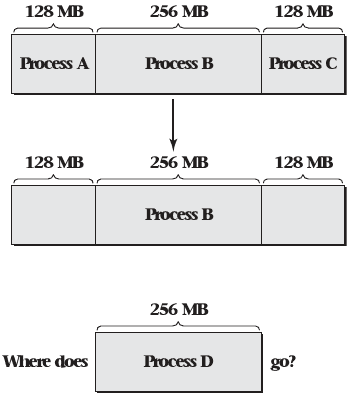

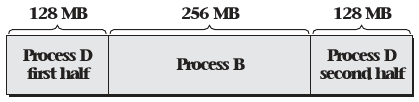

Flexible Memory Allocation

Virtual memory allows physical memory to be allocated and deallocated more freely
A single process can be allocated pages from all over physical memory
These pages appear as a single unified (and often contiguous) address space

Sparse Address Spaces

Processes need not have all addresses mapped
This can allow data structure space to grow without wasting memory

Persistence

Memory addresses don’t have to correspond to physical memory
The OS may provide the ability to map a persistent storage medium to a process address space

Demand Driven Loading

Many programs are large
Conceptually, these programs need to be loaded before being run
Virtual memory can be used to load portions of these programs as needed

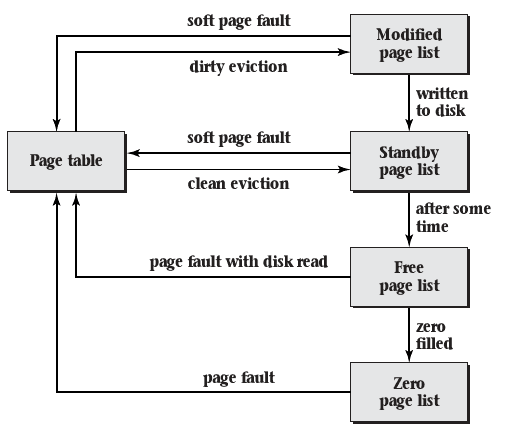

Efficient Zero-filling

Memory allocated to a process should be zeroed before use
This task takes time
An OS can avoid it by assigning copies of a read-only zeroed page to processes
Pages can be swapped out when writes occur

Substituting Disk Storage for RAM

Persistent storage is typically cheaper than RAM
Virtual memory provides the tools to move rarely used memory pages to persistent storage

6.3 Virtual Memory Mechanisms

Mapping

Should be configurable
Should be efficient
Mapping function for pages of addresses, not single addresses

Null mappings

Virtual address pages may map to physical addresses
They may also map to nothing at all

Hardware

Dedicated hardware (MMU) implements mapping for performance reasons
OS configures MMU with appropriate mappings

Page table storage

Data structure may be stored in memory
Using the structure from memory at least doubles the number of memory accesses. Why?

Locality

Memory accesses exhibit spatial and temporal locality
This can be exploited to create far more efficient memory access

Translation Lookaside Buffer

MMU stores (caches) recently used translations
Translation lookaside buffer (TLB) is used to improve performance

Caches

Used to improve latency to access data
Generally have an inverse relationship between latency and size
That is, larger caches are necessarily slower

TLB

Should be fast
Should be large
Can’t be both

Splitting TLB

Using a separate TLB for instruction fetches and data loads improves performance
Locality is improved
Lookups can happen in parallel
Caches can be smaller and therefore faster

TLB Hierarchy

Just like other caches, architects can include multiple levels of TLB cache
This ensures extremely fast performance in the common case
This provides improved performance when the L1 misses and avoids some memory accesses

Combining Entries

Often, systems will perform large allocations of many contiguous addresses
We can eliminate the number of entries needed in the TLB by allowing a single entry to describe multiple contiguous mappings

Page Size

Page size will have a strong impact on MMU and TLB latency
Smaller pages require more entries
Larger pages make less efficient use of space
Variable size pages may provide benefits, but increase complexity

Performance Implications

Programs that access memory sequentially will benefit from both TLB hits and data cache hits
Dense data structures will perform much better than sparse ones
Shorter programs and shorter jumps will see better TLB performance

Hardware Support

Common for MMU to expect page tables in a fixed format
Register is used to tell the MMU where to look for the page table
OS stores the page tables to memory and sets this register

Software-only

MMU may simply send control to the OS on TLB miss
OS returns memory mapping to be used and stored in TLB
Provides slower performance on miss but enhanced flexibility for mapping storage and lookup

Context Switching

Most processes need their own memory mapping and page table
Context switches therefore put pressure on the MMU
TLB needs to be flushed on switch, or entries need to be tagged with a process ID

Linear Page Tables

Store page mapping in a simple array
Easy to access and reason about
Waste large amounts of space for largely sparse mapping

Sparse Addresses

Most virtual addresses aren’t valid mappings
Modern systems include 64 bit addresses
Even using absurdly large page sizes in the GB range, multiple GB are still needed to store the page table for each process

Breaking the Page Table into Pages

A large linear table can itself be broken into pages
Only pages that include valid entries need to be stored

Two Level Page Table

Explicitly store directory of pages as one page
Store page tables as needed referenced from the directory
Used by 32-bit Intel CPUs

Large Pages

x86 implementation provides for skipping the page table entirely
Directory entries include a size bit, which if set indicate a pointer to single large (4MiB) page frame

Multilevel page tables

We can support larger addresses using more levels
Modern 64-bit system often use 4 layer page tables

Hashed Page Tables

Alternative to multilevel page tables
Use a hash data structure in place of a tree

6.4 Policies for Virtual Memory

Policies

Mechanisms for operations have been described
When and how should these mechanisms be applied?

Questions

At what point is a page assigned a page frame?
Which page frame is assigned to each page?
If the operating system needs to move some inactive page to disk in order to free up a page frame, which page does it choose?

Fetch Policy

The OS may assign pages for all program data when a process is started
The OS may wait for page faults before assigning any pages
The OS may do something in between

Prepaging

All pages are available without causing page faults
Programs are slow to load, as all pages must be mapped before executing any code

Demand Paging

Pages are loaded and mapped in response to page faults
Does not waste time creating unused mappings

Choosing Demand Paging

Limited spatial locality making page prediction difficult
Low cost of page faults

Linux Example

Uses demand paging for zero-filled pages because the cost for a fault is very low
Uses a variant of prepaging for pages loaded from disk
Uses demand paging for random access to memory-mapped files

Clustered Paging

Page faults load a cluster of neighboring pages
Linux defaults to loading 16 aligned pages surrounding the requested page
Windows uses different cluster sizes for instructions and data
Clustered paging provides benefit because disk access is typically latency bound rather than bandwidth bound

Placement Policy

Determines where to place a frame

Placement Considerations

Spatial locality for cache performance
NUMA nodes
Energy efficiency (allow some memory chips to enter low power states)

Caching

Conflict (rather than capacity) misses can occur when addresses are poorly chosen
Address coloring or bin hopping are techniques to help avoid an increase in conflict misses from virtual memory

Replacement Policy

Pages may be evicted from memory and stored to disk when memory space is limited
This can happen as pages are requested
Most operating systems choose to keep some number of pages available and perform evictions in the background

Advantages to early evictions

Lower latency for applications that experience page faults
Combining disk write back operations
Page frames that have been marked freed can be reused if an application request them before they are handed over to a new application

6.5 Security and Virtual Memory

Processes

Virtual memory provides basis for private process memory
Security details are covered more deeply in the next chapter

Persistence

Memory is often assumed to volatile
Algorithms need to be able to store sensitive information, such as passwords, in memory while operating on them
Swapping may cause this sensitive information to be written to disk and accessible to an attacker

`mlock`

POSIX standard provides a family of procedures to prevent a page from being swapped to disk
This prevents sensitive information from every being written to persistent storage

7.2 POSIX Process Management API

Process

Closest to the informal idea of a running program

Process

One or more threads
Virtual memory accessible to those threads
Other access rights
Resource allocation context
Other context (e.g. working directory)

Process Identification

Each process has a process ID number (PID)
All PIDs are positive integers

Process Creation

Processes are created as a fork of another
The only exception is the initial process created by the OS on boot

Fork

The fork system call can be called from a thread to create a new process
The parent calling fork sees the process ID of the child as a return value
The child process sees a return value of 0
The child process is otherwise an exact copy of the parent

#include <unistd.h>
#include <stdio.h>

int main() {
  int pid = fork();

  printf("PID: %d\n", pid);
}

Memory

A process created using fork holds copies of all memory available to the parent process
This memory is a copy
Memory is not shared as with threads

Multiprocessing

Can be used to improve performance of parallel computations
Provides different characteristics than threads

Running new programs

exec can be used to cause a process to begin running a new program

#include <unistd.h>
#include <stdio.h>

int main() {
  execl("/bin/echo", "echo", "Hello, world!", NULL);

  printf("An error has occurred");
}

Fork and Exec

fork creates a copied process
exec can be used to cause only the child to run a new program

#include <unistd.h>
#include <stdio.h>

int main() {
  int pid = fork();

  if (!pid) {
    printf("Child launching xterm\n");
    execl("/usr/bin/xterm", "xterm", NULL);
  } else {
    printf("Parent process complete\n");
  }
}

Killing processes

kill can be used to send a signal to a specified process

#include <unistd.h>
#include <stdio.h>
#include <signal.h>

int main() {
  int pid = fork();

  if (!pid) {
    printf("Child launching xterm\n");
    execl("/usr/bin/xterm", "xterm", NULL);
  } else {
    sleep(3);
    printf("Killing %d\n", pid);
    kill(pid, 9);
    printf("Parent process complete\n");
  }
}

Kernel Fork Steps

Fork

Requires the kernel to create a nearly identical replica of the calling process
Involves several mechanical steps to ensure the new process has its own isolated memory and a properly initialized execution state

Finding a Process Slot

The kernel must iterate through ptable to find an entry where the state is P_FREE
Slot 0 is typically reserved for the kernel and is never used for a new process

Allocating a Page Table

The kernel allocates a new page table for the child process using kalloc_pagetable
This new page table must initially include the kernel’s identity mappings so that the child can still execute kernel code during system calls and interrupts

Copying Memory Content

The kernel iterates through the parent’s virtual address space using an iterator like vmiter
For every page that is user-accessible (code, data, stack, and heap):
1. Allocate a new physical page
2. Copy the data from the parent’s physical page to the child’s new physical page
3. Map this new physical page into the child’s page table at the same virtual address used by the parent

Initializing the Execution State

The child process must begin execution at the exact same point where the parent called fork
The kernel copies the saved register state from parent to child

Return Values

To distinguish the two processes, the kernel modifies the return value register in the child’s saved state
- On x86-64, this means setting reg_rax to 0
The parent’s return value is set to the PID of the child

Marking the Process as Runnable

The process state is changed from P_FREE to P_RUNNABLE
On the next timer interrupt or schedule event, the kernel’s scheduler may select the child process to run

7.3 Protecting Memory

Virtual Memory

Provides the framework for memory protection
Different mapping can be used for different processes
Mappings can include memory permission bits

Processor Modes

Code running as part of a user application may only access its own memory (user mode)
Code running as part of the OS needs access to everything (kernel mode)

Kernel Mode

All instructions are available
- I/O
- Change modes
- Change memory permissions

User Mode

Normal instructions are usable
Privileged instructions will fail
Illegal instructions are caught by the OS (trap)

System Calls

Effectively illegal operations
OS traps the call and performs some requested operation
Control typically returns to the process that requested the system call

Threads

Can be implemented differently based on protection level and mode switch
Kernel thread - run and scheduled in kernel mode
Native thread (or just thread) - run in user mode, scheduled in kernel mode
User thread - run and scheduled in user mode

Multiple Address Spaces

Each process has its own virtual address space
Used by OS X, Windows, Linux, etc
Memory mappings are used to control permissions and access

7.4 Representing Access Rights

Protection system

Controls access to objects by subjects
Object is what is being protected
Subject is trying to access the object

Operations

Associated with an object
Can be performed by a subject

Access Right

Permission for a subject to perform an operation on an object

Principal

Rights are attached to subjects (active users)
A principal (often a user) is used to determine appropriate rights
Processes may be the subject, but their rights reflect those of the user that owns them

Capabilities

Indirect reference to object
Includes information needed to locate object and a set of access rights
Also known as handles (Windows) and descriptors (POSIX)

Access Control List

List of access rights associated with an object

Example

> getfacl /bin/ls

# file: bin/ls
# owner: root
# group: root
user::rwx
group::r-x
other::r-x

POSIX file permissions

r - Read
w - Write
x - Execute

POSIX directory permissions

r - List
w - Create/rename/delete files in directory
x - Traverse a directory (access files if name already known)
Common combinations are rwx, r-x, and ---

Security and Protection

Protection is essential for security, but it is not equivalent to security
ACLs and other measures must be applied carefully and correctly to provide security

Users and processes

Processes are run using user credentials
They may take actions that a user did not intend
An example is a Trojan horse program

Worms

Trojan horse programs that execute malicious code and redistribute themselves to others
Often sent via email

setuid

Some programs run by users need elevated permissions
This can be achieved by allowing programs to run as the user who owns the program rather than the user who executes it
These programs must be written carefully and securely to prevent these permissions from spilling over into child process or other operations

8.1 Files and Other Persistent Storage

Persistence

Data stored in memory disappears on power failure or reboot
The OS should provide a way to store data longer term

Access

Provide a means to reference stored objects by name
Objects could also be accessed by contents

Files

Blend persistence and access

Common forms of persistent storage

File - Array of bytes
Table - Array of typed data fields
Persistent Object - Serialized data structure from a programming context

Common access services

Hierarchical directories mapping names to objects
Indexes providing access based on contents

8.2 Storage Technology

The recent history of persistent storage has been dominated by spinning hard drives
Solid-state drives have begun to replace spinning drives

Disk Drive

Store data in 512 byte blobs called sectors (other sizes are possible)
Conceptually, an array of sectors
The processor can request that an ordered group of sectors be transferred to RAM or vice versa

Disk drive performance

Linear reads are much faster than random reads
Head seeking takes
Rotational latency (waiting for the sector to arrive under the head) also adds to latency
Reads should be queued on the drive to allow the drive to make correct performance decisions

SSDs

Do not experience mechanical seeks or rotational latency
Less penalty for random reads
Generally lower latency and high bandwidth than spinning drives
Currently more expensive per byte

8.3 POSIX File API

Standardization

UNIX-like systems share the same standards (POSIX)
POSIX is implemented by Unix systems, Mac OS, and Linux

Referencing files

Files are commonly referenced by path name
Files are also referenced by an integer called a file descriptor

File descriptor

Integer
References a files
Can be obtained using open system call

Other endpoints

Descriptors are often used with persistent files
They may also be used with other destination for input and output
Examples include stdout, sockets, and hardware devices

Inherited descriptors

All processes inherit at least 3 file descriptors
- Standard input (0)
- Standard output (1)
- Standard error (2)

unistd.h

Includes definitions for many POSIX API components

Redirection

Standard input and output are generally the terminal
They can be redirected elsewhere via the shell

Open

Get a new file descriptor
Requires filename and a mode to open a file

Modes

O_WRONLY - Write only
O_RDONLY - Read only
O_RDWR - Read and write
O_CREAT - Create file if not present
O_TRUNC - Empty file before writing

Close

Closes a file descriptor allowing the OS to free its memory
All open descriptors are closed on program termination

Memory Mapped I/O

Map a file to a processes virtual address space
Loads and stores to memory provide random read and write access to the file

Issues with `mmap`

No easy control over when updates become persistent
There can be no write only permissions
Implies that files size is known

Copying

read and write can be used to copy file sections to memory
pread and pwrite work similarly, but require a position

Sequential operation

Some descriptions (e.g. network sockets) only allow sequential operation
read and write can be used to copy data sequentially

Implicit position

read and write update a stored position in a file
lseek can be used to adjust this stored position

8.4 Disk Space Allocation

Virtual Memory

Maps virtual address space to physical memory (typically DRAM)
Storage is not persistent
Mapping happens in chunks called pages

File System

Maps positions in files to persistent storage (typically disks)
Storage is persistent
Mapping happens in chunks called blocks

Allocations

Any block in a file could be mapped to any block on a disk
Not all choices are equal
Goal is to optimize space and time usage

Wasted Space

Blocks are fixed sizes
Using less than a full block of space creates unused space that can never be used

Internal Fragmentation

Unusable space that is allocated, but not available for use
Occurs in the empty space at the end of blocks

External Fragmentation

Unusable space that is not allocated, but too small to be useful
Occurs in the relatively small gaps between allocated blocks

Extents

Contiguous chunks of files

Locality Guidelines

Files should be broken into as few extents as possible
If multiple extents are required, they should be as close as possible
Files that are used together should be stored together

Locality Policies

Assume files in a directory are used together and store them together
Measure usage and assume that files that were accessed together with be accessed together in the future

Tracking Allocations

Many implementations
ext3 stores a bit representing free or used for each block group
Each block group contains a similar mapping for its blocks

Allocation Policies

Files in a directory will often be stored in a block group to improve locality
Subdirectories are often stored in new block groups

Delayed Allocation

File size is not generally known at creation time
Writes to files are buffered to RAM before being written to disk
The OS may choose to buffer many writes in order to determine appropriate file size before performing allocation

8.5 Metadata

Metadata

Data about data
Information about where block of a file are stored
File access control
Dates and times

File Names

Not really metadata
Names provide a reference to a file
Names are not a property of a file
Multiple names can point to the same file

Data Location Metadata

ext3 stores file metadata in blocks called inodes
Each inode stores file metadata including data locations
inodes are stored in a linear array
Each file has a unique inode

Sparse Files

It is not necessary for empty blocks to be backed by actual storage
A large file used sparsely need not take up the full file size on disk

Example

> dd if=/dev/zero of=sparsefile count=0 bs=4k seek=1000000000
> ls -s sparsefile
0 -rw-rw-r-- 1 jncraton 3.8T Apr  6 09:11 sparsefile

POSIX Metadata

Owner (number)
Group (number)
File mode (9 permission bits)
Stored in inode

Other Metadata

File size
Modified, written, accessed times
Count of names referencing this file

8.6 Directories and Indexing

Files

Provide access to blobs of data
Include names for easy access
Stored in a hierarchy

Directories

Provide hierarchical levels for storing files
Each name in a director points to one file
Names within a directory are unique

Unordered Linear List

Simple
Trivial O(1) modification
O(n) lookup where n is number of files in directories
Large number of files create inefficiency

Hash Tables

O(1) lookup without collisions
Does not provide a way to iterate names in order

B+-Tree

Tree with large fan out to reduce number of lookups
O(log n) search
Internal nodes contain pointers to leaves and no values
Nodes include links to next sibling to form a linked list

B+-Tree

Commonly used for directory storage
Used by NTFS (Microsoft), HFS (Apple), and XFS (open source)

8.7 Metadata Integrity

Buffering Writes

Data to be written to disk is stored temporarily in RAM
RAM loses state without power
What happens to buffered writes when the system is power cycled?

Data Loss

Buffered data will be lost
Application programs need to be able to handle this
Databases may solve this using a write-ahead log

Metadata Consistency

Metadata must not become inconsistent
Blocks that are in use must be marked as not available to others
Blocks marked as in use should be pointed to by an inode

Irreparable Corruption

Must be avoided
Example is two files sharing an underlying data block

Noncritical Reparable Corruption

Can be fixed after the fact
Lost block in a single file

Critical Reparable Corruption

Can be fixed after the fact
Must be fixed before the system resumes it regular work
Example is a block in use by a file but not marked as in-use

Consistency Strategies

Journaling
Shadow Paging

Journaling

Each logical change is only a single block written to persistent storage
This single block is the commit record for a transaction
Partially complete transactions can be rolled back
NTFS, HFS, ext3

Shadow Paging

Creates new data structures instead of modifying existing structures
Single block change updates pointer to current metadata structure
ZFS, BTRFS

Snapshots

If we select shadow paging, we can keep old metadata blocks around
If we also create copies of blocks on write, we can cheaply store each state of the file system in time
This can be very valuable in certain contexts

8.9 Security and Persistent Storage

Threat Model

What are we trying to defend against?
External vs internal attackers
Physical access vs remote access
Data loss vs data exfiltration

Encryption

Data written to disk without encryption will be vulnerable to physical exfiltration
This may be expensive
This also applies to values in memory that have been swapped to disk

File Encryption

Protect certain files from being accessed
Does not protect swap
Can lead to sensitive data being stored on the system

Full Disk Encryption

FDE
Encrypts all data on the drive
Requires an encryption key in order to boot the system

Deleting Files

In most file systems, data is left on a drive after file deletion
Pointers to the file are what get removed
File can be securely erased by overwriting their underlying data
SSD data can’t be overwritten to wear level, but SSDs include a secure erase method
