Mutex Implementation

Exceptional Circumstances

  • Unlocking an already unlocked mutex
  • Unlocking a mutex locked by a different thread
  • Locking a mutex that we already hold

Mutex Types

  • PTHREAD_MUTEX_DEFAULT - Produces undefined behavior in exceptional cases
  • PTHREAD_MUTEX_ERROR_CHECK - Error codes returned for exceptional cases

Mutex Types

  • PTHREAD_MUTEX_NORMAL - Self-deadlocks are possible. Produces undefined behavior in other cases
  • PTHREAD_MUTEX_RECURSIVE - A counter is used for lock state. A mutex can be locked multiple times and must be unlocked the same number of times before truly being unlocked

Monitors

  • OOP approach to thread safety
  • Provide more structured mutexes

Monitor Objects

  • All state is private
  • Objects include a mutex in addition to their state
  • Every public method begins by locking the mutex and ends by unlocking it

Races

  • A race on object state will be impossible if the object is a monitor

Language support

Mutex Implementation

  • Atomic instruction is needed that can modify memory and report its previous value
  • swap to exchange a register value with memory is sufficient

Spinlock

  • Memory value 1 is unlocked, 0 is locked
  • Unlock by storing 1
  • Lock by swapping 0 with the mutex value
    • Locking succeeded if we get a 1 back
    • Otherwise, try until we get a 1 back
to lock mutex:
  let temp = 0
  repeat
    atomically exchange temp and mutex
  until temp = 1
Spinlock implementation

Cache-conscious spinlocks

  • Wait for another thread to change the lock state before atomically locking it
  • Avoids poor cache performance while waiting
to lock mutex:
  let temp = 0
  repeat
    atomically exchange temp and mutex
    if temp = 0 then
      while mutex = 0
        do nothing
  until temp = 1

Spinlocks

  • Explicitly waste CPU time
  • Can be appropriate in the case where very little waiting is typically needed due to fast operations
  • Does not require a system call

Queuing Mutex

  • Avoids spinning
  • Components
    • Mutex state
    • Wait queue for waiting threads
    • Cache-conscious spinlock to protect own state

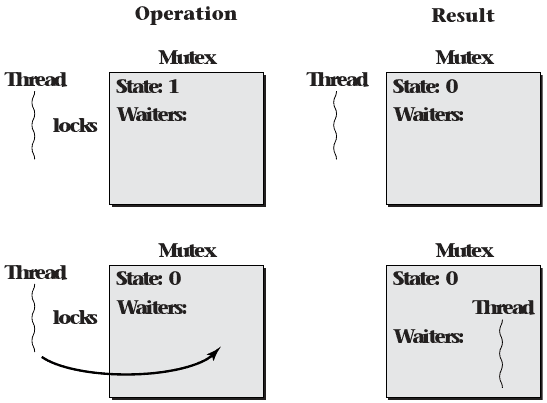

Queuing mutex locking

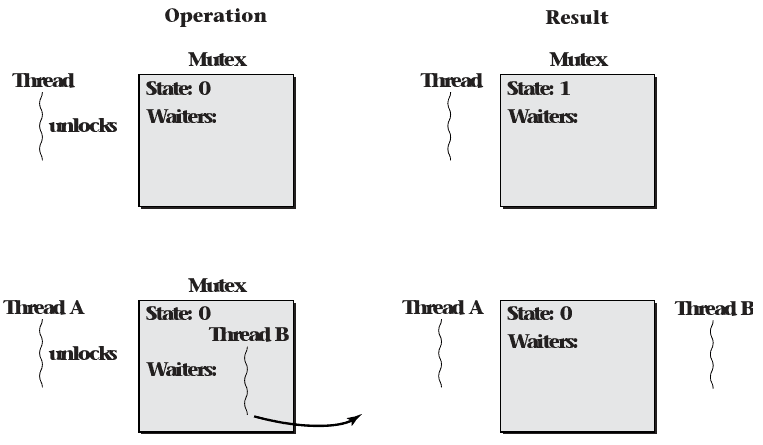

Queuing mutex unlocking
